Delta 340 sw

340 sw | The All-Purpose Pilothouse

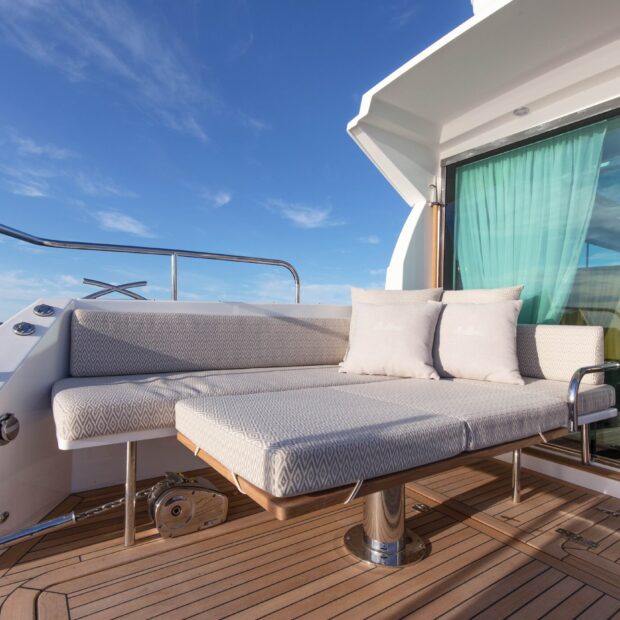

Delta 340 sw is a subtle revision of the original 34 with several improvements and re-worked features. A redesigned aft deck with an open transom extends out to the bathing platform facilitating boarding, on-board tasks and social activities. Seamless integration with the most modern maneuvering technologies like the optional Dynamic Positioning System and Volvo joysticks allow for effortless handling when docking and underway.

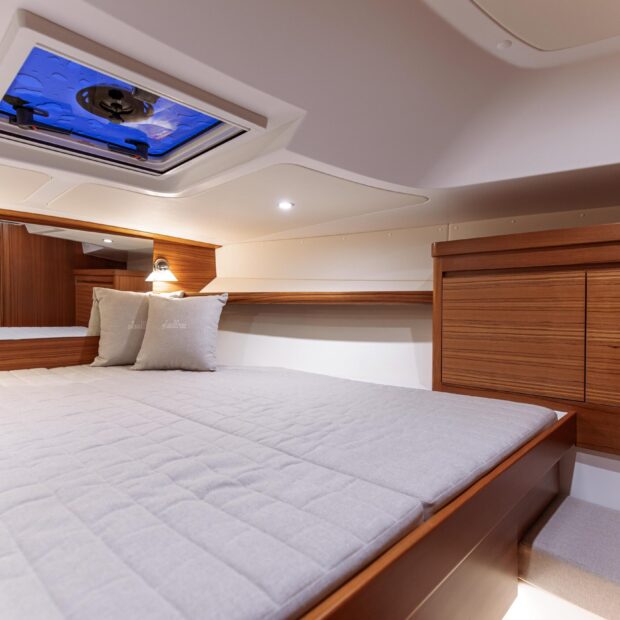

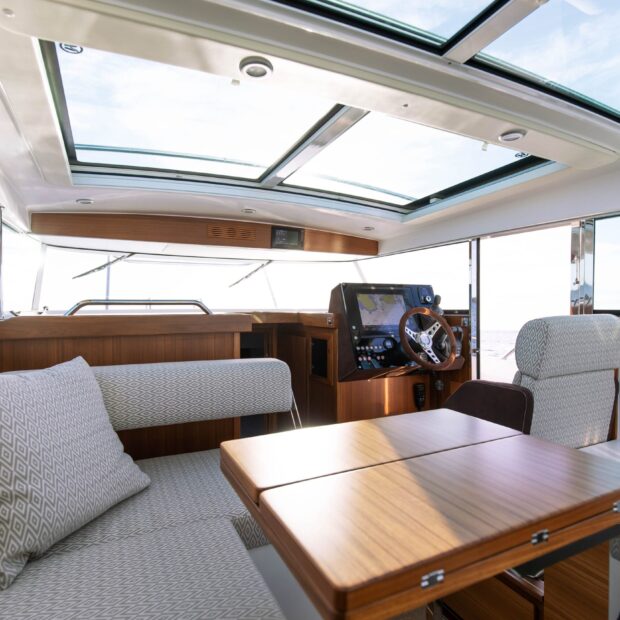

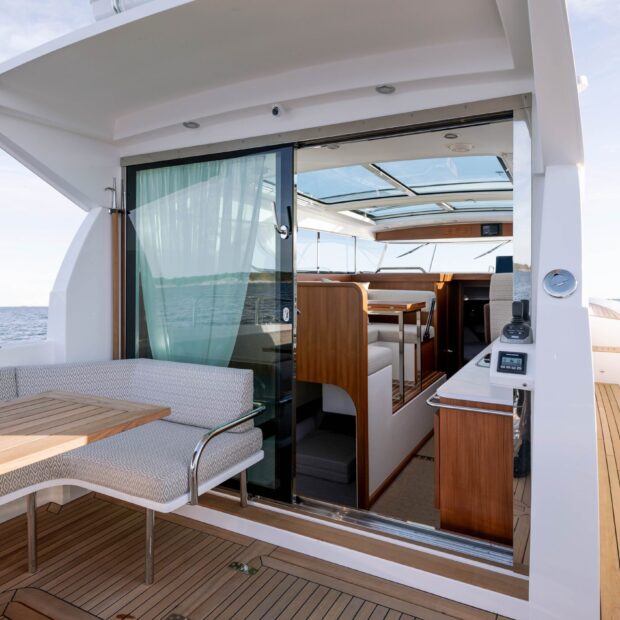

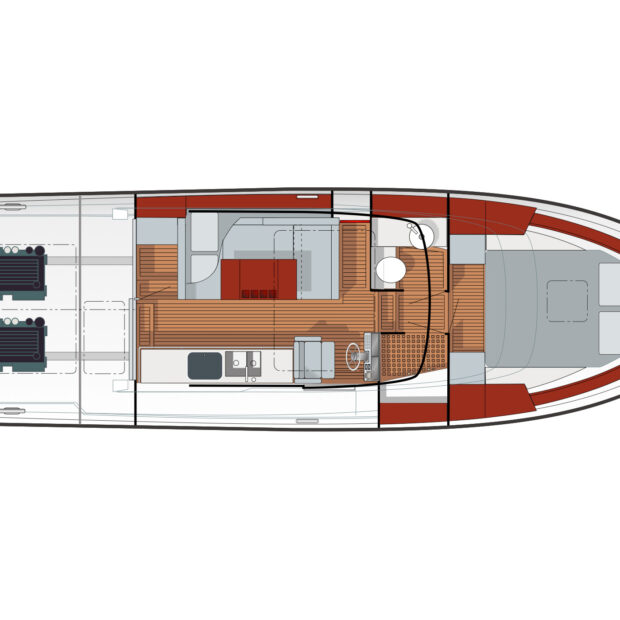

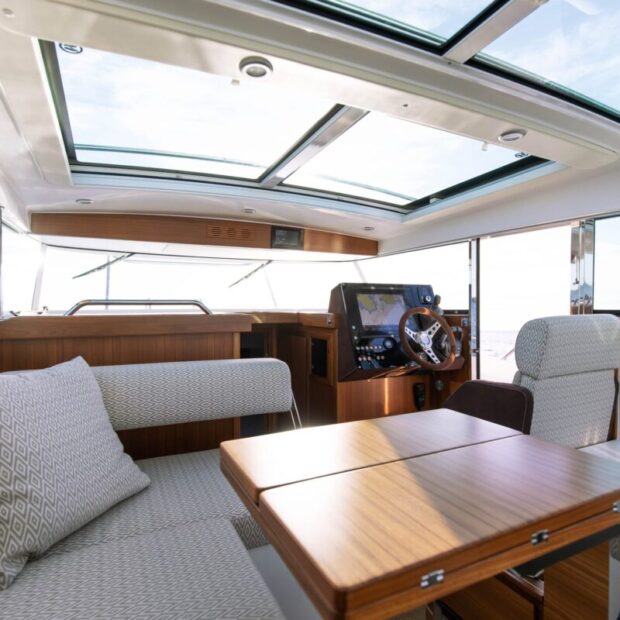

The wide pilothouse with its new and extended coach roof provides excellent views and features an electrical glass roof, making the Delta 340 sw adaptable to changing weather and relevant for boaters who wish to enjoy an extended season on the water. Below deck, the interior holds accommodation for four guests in two cabins along with a separate head on port side and a shower cabin on starboard side.

SPECIFICATIONS

  • LOA 36.4 ft
  • Hull Length 33.8 ft
  • Beam 10.8 ft
  • Draft 3.9 ft
  • Displacement 10,471 lbs.
  • Fuel capacity 132 gallons

FEATURES

  • Asymmetric sidewalk deck layout
  • 2-cabin layout
  • 1 separate head
  • 1 separate shower cabin
  • Fully equipped galley and table ware
  • Aft deck dining area with lowerable table
  • Swim platform
  • Garmin Glass Cockpit
  • Fusion sound system
  • Mastervolt CZone digital switching
  • Bow thruster
  • Zipwake interceptors

CONSTRUCTION

  • Single stepped air-supported deep v-hull
  • Vacuum infused vinylester on divinycell core
  • Lamination made according to Diab Core Infusion Technology
  • Handmade interior and woodworks

Design: Lars Modin
Builder: Luksusjaht AS

PROPULSION OPTIONS

  • Volvo Penta D6-440 / DPI or
  • Volvo Penta D4-320 / DPI (Twin)
  • Cruise speed 28-36 knots
  • Top speed (D6) 38 knots
  • Top speed (2 x D4) 45 knots
  • Consumption 30 kts 0.42-0.53 gallons / nm
  • Range 30 knots 250 nm
